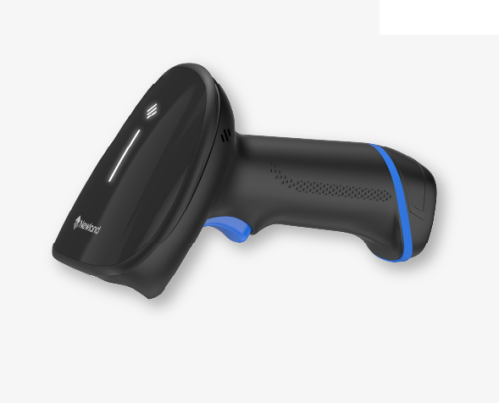

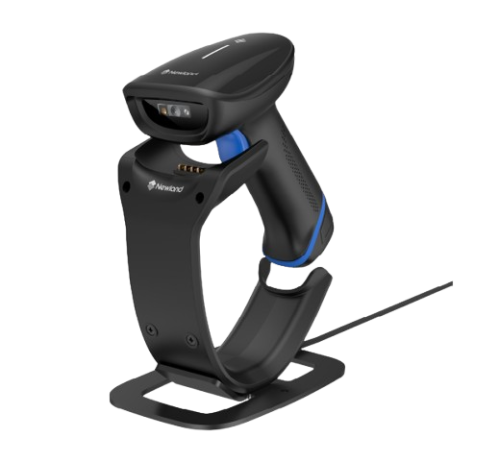

HR2000-BT Handheld Scanner Include Stand, PSU And USB Cable
- Durable Construction
The NLS-HR2000-BT, built into an IP52-sealed and drop resistant (1.5m) housing with no moving parts, fortifies itself inside and out.
- Replaceable Battery
With 2600mAh battery, it will run a comfortable 16 hours of continuous use. Replaceable battery ensures continuous functionality and minimizes downtime.
- Outstanding Performance
Equipped with an outstanding CPU, this wireless handheld scanner can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
- Reliable Wireless Communication
Adopting the latest Bluetooth 5.0 technology, the NLS-HR2000-BT is able to maintain a reliable wireless connection to transmit data. The communication distances up to 100m.
| Image Sensor | 640×480 CMOS | |
| Illumination | White LED | |
| Aiming | Red LED | |
| Symbologies | 2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Hanxin Code. 1D: Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS). |
|
| Resolution | ≥3mil | |
| Typical Depth of Field | EAN-13: 50mm-260mm (13mil) QR Code: 30mm-170mm (15mil) Code 39: 50mm-115mm (5mil) PDF 417: 50mm-120mm (6.67mil) Data Matrix: 35mm-125mm (10mil) |
|
| Scan Angle | Pitch: ±60°, Roll: 360°, Skew: ±60° | |
| Field of View | Horizontal 45°, Vertical 34° | |
| Min. Symbol Contrast | 20% | |
|
Wireless
|
Communication Mode | Synchronous mode, asynchronous mode and batch mode | |
| Radio Technology | Bluetooth 5.0 | ||
| Communication Distance | 100m (direct line of sight in open air) | ||
| Memory Capacity | 16384 pieces | ||
| Battery | 2600 mAh lithium-ion battery | ||
| Expected Charge Time | 6 hours | ||
| Expected Battery Life | 16 hours of continuous operation (scan once per 6 seconds) | ||
|
Physical
|
Interface | USB Type-A (Support USB-KBW, USB-CDC, HID-POS) | |
| Operating | 5VDC±5% | ||
| Dimensions (L×W×H) | Scanner: 117.5×67.5×144mm; Cradle: 140×90×144.5mm |
||
| Weight | Scanner: 209g; Cradle:340.5g |
||
| Notification | Beep, LED, vibration | ||
|
Environmental
|
Operating Temperature | -10°C to 50°C (14°F to 122°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Battery Charge Temperature | 0°C to 45°C (32°F to 113°F) | ||
| Humidity | 5% ~ 95% (non-condensing) | ||
| ESD | ±15 KV (air discharge); ±8 KV (direct discharge) |
||
| Drop | Scanner: 1.5m; Cradle: 1.2m |
||
| Sealing | IP52 | ||
